Quest Dual 205

OVERHEAD SERIES

@ 80 F / 60% RH

  • Capacity 205 Pints/Day
  • Efficiency 5.7 Pints/kWh
  • Supply Voltage 110-120V
  • Current Draw 13.2 Amps

Overview

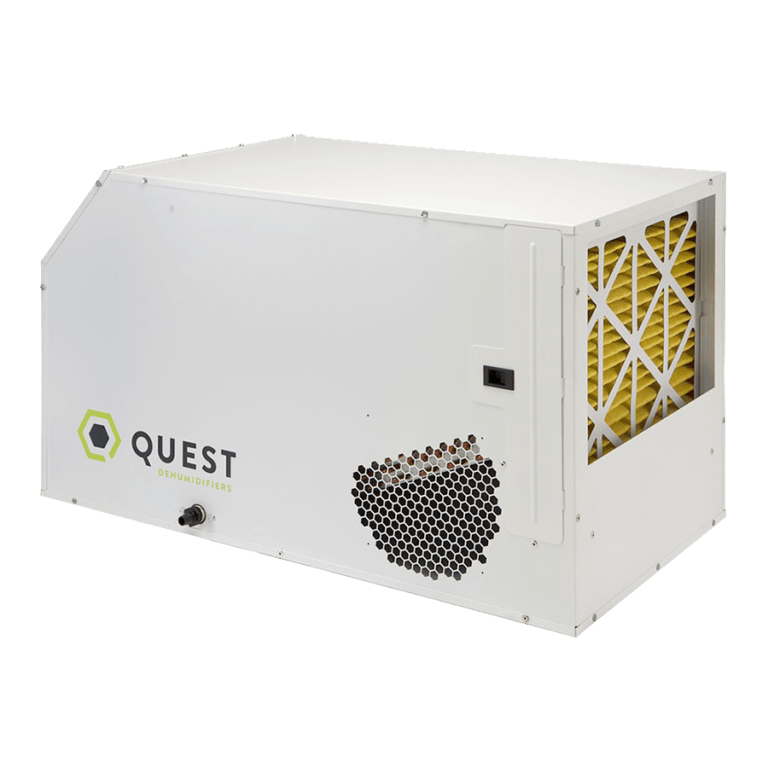

The Quest Dual 205 is our highest capacity 115V dehumidifier.Using 13.2 amps, the Dual 205 removes 205 pints of water per day while running 46% more efficiently than Energy Star standards. It gives you the flexibility to hang the unit overhead or use ductwork and keep the dehumidifier in a different space entirely.

Like all Quest products, the Dual 205 is Assembled in Madison, Wisconsin using the very best components and materials available.

Features

OVERHEAD OR GROUND PLACEMENT

Built to fit what works for your space

PLUG-N-PLAY

No installation required

WIDEST OPERATING RANGE

Of temperature and relative humidity

UL RATED AND ETL LISTED

The highest safety standard

LONG POWER CORD

For extended reach

AUTO RESTART

Unit automatically defaults to prior settings in the event of a power outage

MERV 11 FILTRATION

Can remove harmful contaminants from the air such as dust, pollen and mold

Specifications

@ 80 F / 60% RH

Water Removal

205 Pints/Day

Efficiency

5.7 Pints/kWh

Energy Factor

2.7 Liters/kWh

Current Draw

13.2 Amps

Power

1,525 Watts

BTU (Total)

14,300

BTU (Heat of Condensation)

9,200

BTU (Motor Load)

5,100

@ 75 F / 50% RH

Water Removal

128 Pints/Day

Efficiency

3.9 Pints/kWh

Energy Factor

1.8 Liters/kWh

Current Draw

11.8 Amps

Part Number

4033060

Dehumidifier Type

Refrigerant Dehumidifier

CFM

526

Operating Temperature

56 F Min–95 F Max

Supply Voltage

110–120 VAC, 1 Phase, 60 Hz

Unit Dimensions

20.25″ W x 21.75″ H x 38″ L

Unit Weight

150 lb

Control Type

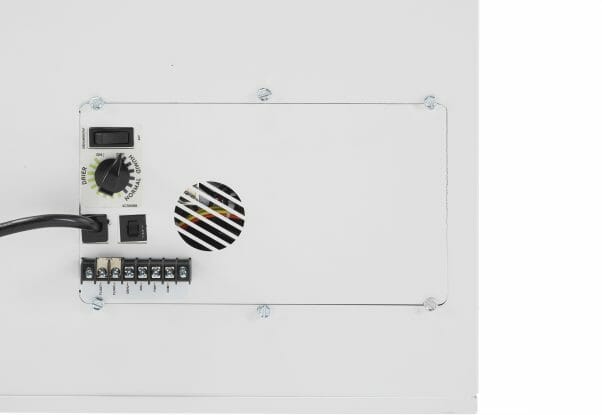

Onboard controls with low voltage terminal block

Air Filter MERV Rating

MERV 11

Air Filter Dimensions

16″ x 20″ x 2″

Power Cord

14ga NEMA 5-20P (10′)

Refrigerant Type

R410A

Refrigerant Amount

2 lb

Drain Port Connection

3/4″ Threaded NPT

Warranty

5 Year

Sizing & Selection

properly size dehumidification equipment How to properly size your dehumidification equipment (VIDEO)

How to properly size your dehumidification equipment (VIDEO)

Getting at how much humidity control you need isn’t the international man of environmental control mystery, like many of us think. In fact, how to properly size your dehumidifiers is relatively straightforward IF you have the necessary data.

Read More →
quest perfect your set up Grow room dehumidifiers: Perfect your setup

Grow room dehumidifiers: Perfect your setup

When the team at East Coast Cultivation set out to build its new indoor grow operation in Rhode Island, it knew it had to nail one thing: environmental controls.

Read More →
plants Vapor Pressure Deficit and Why it Matters

Vapor Pressure Deficit and Why it Matters

The gardening world is filled with trends and phrases that come and go as quickly as they’re created. Sometimes these concepts are thrown around without full understanding, especially with the more scientific processes. One of the most misunderstood concepts is vapor pressure deficit, or VPD, as it’s commonly called.

Read More →

Need Help Sizing?

Our humidity experts are standing by to assist.

Installation Options

Freestanding unit

Hanging Kit Available

P-Trap Requirements
