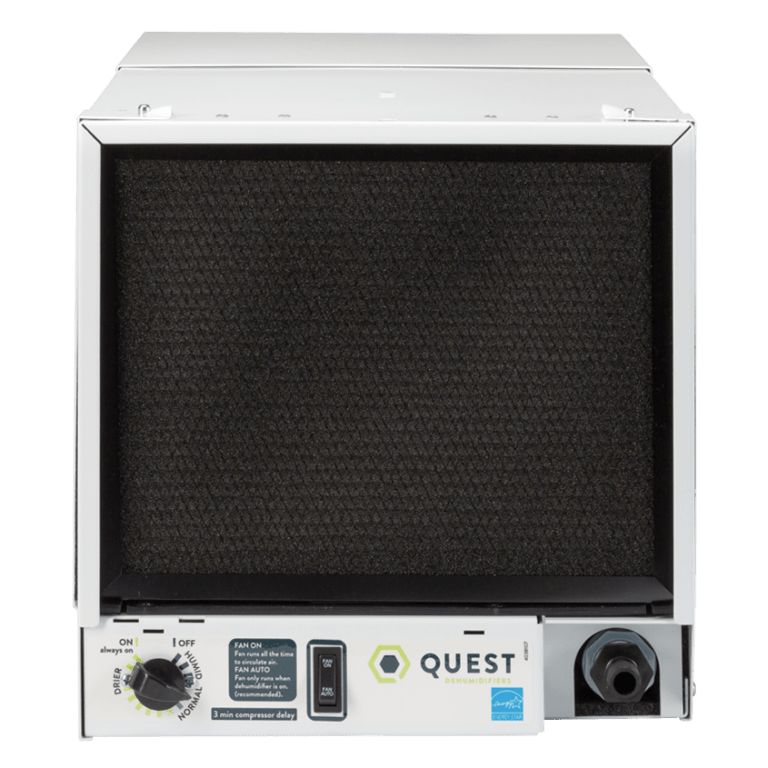

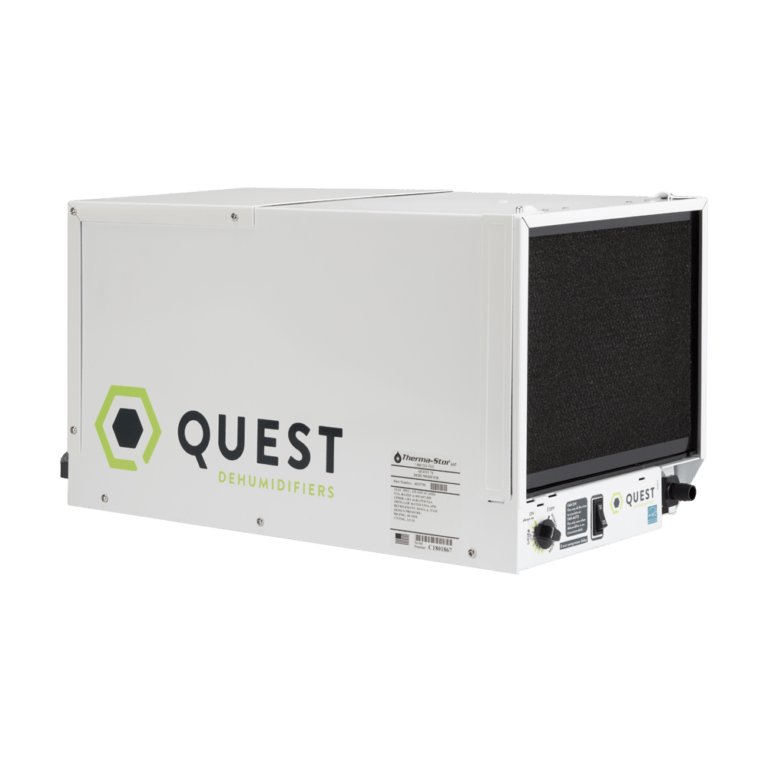

Quest 70

HIGH-EFFICIENCY SERIES

@ 80 F/60% RH

  • Capacity 70 Pints/Day
  • Efficiency 5 Pints/kWh
  • Supply Voltage 110-120V
  • Current Draw 5.1 Amps

Overview

Controlling humidity in compact, unconditioned commercial spaces presents unique challenges. Variable temperatures and constrained placement means you need a targeted solution. That’s where the Quest 70 comes in.

This compact, economical, high performing dehumidifier has one of the widest temperature and relative humidity operating ranges we offer.

Key Features

PLUG-N-PLAY

No installation required

INDUSTRY’S LOWEST AMP DRAW

More efficient units have less heat output and free up electricity for other equipment

ONBOARD DEHUMIDISTAT

Along with a low voltage terminal block

Features

OVERHEAD OR GROUND PLACEMENT

Built to fit what works for your space

HIGH EFFICIENCY

No dehumidifier is more efficient

WIDEST OPERATING RANGE

Of temperature and relative humidity

UL RATED AND ETL LISTED

The highest safety standard

LONG POWER CORD

For extended reach

AUTO RESTART

Unit automatically defaults to prior settings in the event of a power outage

MERV 13 FILTRATION

Superior filtration removes more harmful contaminants from the air such as dust, pollen and mold as well as bacteria and viruses

COMPACT UNIT

For mobility and a small footprint that won’t interfere with grow room operations

Specifications

@ 80 F/60% RH

Water Removal

70 Pints/Day

Efficiency

5 Pints/kWh

Energy Factor

2.4 Liters/kWh

Current Draw

5.1 Amps

Power

680 Watts

BTU (Total)

5,000

BTU (Heat of Condensation)

3,000

BTU (Motor Load)

2,000

@ 75 F/50% RH

Water Removal

43 Pints/Day

Efficiency

3.3 Pints/kWh

Energy Factor

1.6 Liters/kWh

Current Draw

4.9 Amps

Part Number

4033750

Dehumidifier Type

Refrigerant Dehumidifier

CFM

150

Operating Temperature

33 F Min–100 F Max

Supply Voltage

110–120 VAC, 1 Phase, 60 Hz

Unit Dimensions

12″ W x 12″ H x 21.5″ L

Unit Weight

55 lb

Control Type

Onboard controls with low voltage terminal block

Air Filter MERV Rating

MERV 13

Air Filter Dimensions

9″ x 12″ x 1″

Power Cord

110-120 VAC

Refrigerant Type

R410A

Refrigerant Amount

15 oz

Drain Port Connection

3/4″ Threaded NPT

Warranty

5 Year

Sizing & Selection

properly size dehumidification equipment How to properly size your dehumidification equipment (VIDEO)

How to properly size your dehumidification equipment (VIDEO)

Getting at how much humidity control you need isn’t the international man of environmental control mystery, like many of us think. In fact, how to properly size your dehumidifiers is relatively straightforward IF you have the necessary data.

quest perfect your set up Grow room dehumidifiers: Perfect your setup

Grow room dehumidifiers: Perfect your setup

When the team at East Coast Cultivation set out to build its new indoor grow operation in Rhode Island, it knew it had to nail one thing: environmental controls.

plants Vapor Pressure Deficit and Why it Matters

Vapor Pressure Deficit and Why it Matters

The gardening world is filled with trends and phrases that come and go as quickly as they’re created. Sometimes these concepts are thrown around without full understanding, especially with the more scientific processes. One of the most misunderstood concepts is vapor pressure deficit, or VPD, as it’s commonly called.

Need Help Sizing?

Our humidity experts are standing by to assist.

Installation Options

Freestanding unit

Hanging Kit Available

P-Trap Requirements

Discover how much you could save with Quest.

1

How much does your energy cost?

2

How much water do you need to remove?

3

How much does the competing dehumidifier cost?

Quest 70

Machines/Room

4

Equipment Cost @ MSRP 4 × $1299.95

$ 4800

Vegetation Period (4 Weeks) 80F/60%, Filter 100%

$ 2400

Flower Period (7 Weeks) 75F/55%, Filter 50%

$ 1600

Flower Period (2 Weeks) 70F/50%, Filter 25%

$ 114

Operating Costs Per 3mo Grow Cycle

$ 4114

Yearly Costs

$ 16,457

× 5

Year 1 4 Grow Cycles

$ 16,457

Year 2 4 Grow Cycles

$ 16,457

Year 3 4 Grow Cycles

$ 16,457

Year 4 4 Grow Cycles

$ 16,457

Year 5 4 Grow Cycles

$ 16,457

Total Cost (5 Years) Equipment + Operating Cost

$ 123631

Competitor 70

Machines/Room

Additional competitor units may be needed to address total water removal at rated conditions due to ppd de-rated capacity.

Quest: 205 gal/day de-rated capacity.
Competitor: 190 gal/day de-rated capacity.

4

Equipment Cost @ MSRP 5 × $1636.53

$ 4800

Vegetation Period (4 Weeks)
80F/60%, Filter 100%

$ 3304

Flower Period (7 Weeks)
75F/55%, Filter 50%

$ 3177

Flower Period (2 Weeks)
70F/50%, Filter 25%

$ 240

Operating Costs Per 3mo Grow Cycle

$ 4114

Yearly Costs

$ 16,457

× 5

Year 1 4 Grow Cycles

$ 16,457

Year 2 4 Grow Cycles

$ 16,457

Year 3 4 Grow Cycles

$ 16,457

Year 4 4 Grow Cycles

$ 16,457

Year 5 4 Grow Cycles

$ 16,457

Total Cost (5 Years) Equipment + Operating Cost

$ 180012

Total Savings Over 5 Years

$ 56,381
