Quest Dual 105

Overhead Series

@ 80 F / 60% RH

  • Capacity 105 Pints/Day
  • Efficiency 8.8 Pints/kWh
  • Supply Voltage 110-120V
  • Current Draw 4.9 Amps

Overview

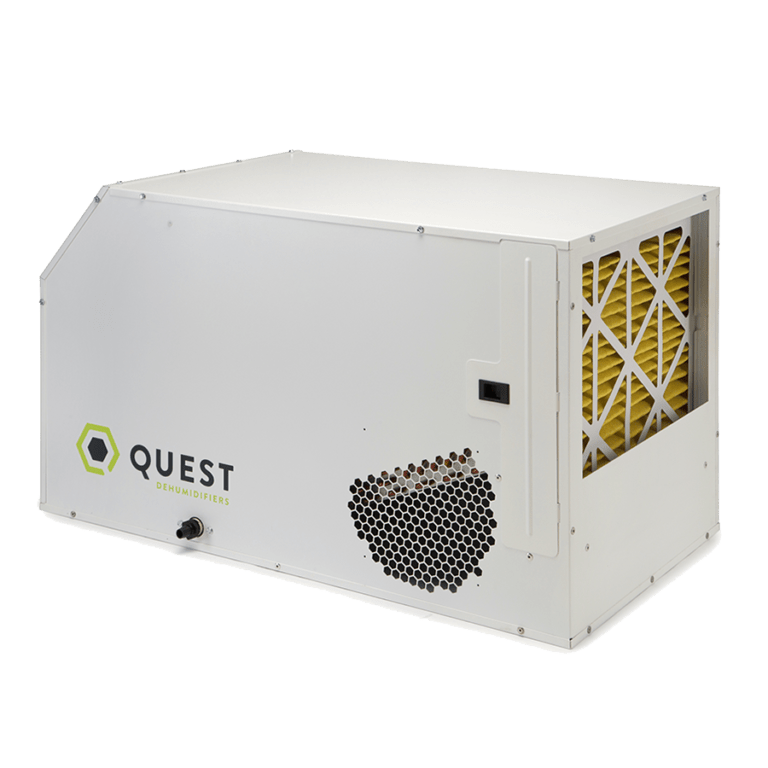

The Quest Dual 105 is the most energy efficient dehumidifier in its class: Using only 4.9 amps, the Quest Dual 105 removes 105 pints of water per day. It gives you the flexibility to hang the unit overhead or use ductwork and keep the dehumidifier in a different space entirely.

Key Features

HIGH EFFICIENCY

No dehumidifier is more efficient

INDUSTRY’S LOWEST AMP DRAW

More efficient units have less heat output and free up electricity for other equipment

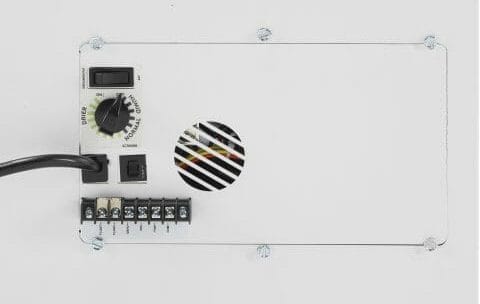

ONBOARD DEHUMIDISTAT

Along with a low voltage terminal block

Features

OVERHEAD OR GROUND PLACEMENT

Built to fit what works for your space

PLUG-N-PLAY

No installation required

WIDEST OPERATING RANGE

Of temperature and relative humidity

UL RATED AND ETL LISTED

The highest safety standard

LONG POWER CORD

For extended reach

AUTO RESTART

Unit automatically defaults to prior settings in the event of a power outage

MERV 11 FILTRATION

Can remove harmful contaminants from the air such as dust, pollen and mold

Specifications

@ 80 F / 60% RH

Water Removal

105 Pints/Day

Efficiency

8.8 Pints/kWh

Energy Factor

4.2 Liters/kWh

Current Draw

4.9 Amps

Power

530 Watts

BTU (Total)

6,600

BTU (Heat of Condensation)

5,000

BTU (Motor Load)

1,600

@ 75 F / 50% RH

Water Removal

74 Pints/Day

Efficiency

7.2 Pints/kWh

Energy Factor

3.4 Liters/kWh

Current Draw

3.7 Amps

Part Number

4032270

Dehumidifier Type

Refrigerant Dehumidifier

CFM

257

Operating Temperature

56 F Min–95 F Max

Supply Voltage

110–120 VAC, 1 Phase, 60 Hz

Unit Dimensions

20.25″ W x 21.75″ H x 38″ L

Unit Weight

140 lbs

Control Type

Onboard controls with low voltage terminal block

Air Filter MERV Rating

MERV 11

Air Filter Dimensions

16″ x 20″ x 2″

Power Cord

14ga NEMA 5-15P (10′)

Refrigerant Type

R410A

Refrigerant Amount

1 lb 10 oz

Drain Port Connection

3/4″ Threaded NPT

Warranty

5 Year

Sizing & Selection

properly size dehumidification equipment How to properly size your dehumidification equipment (VIDEO)

How to properly size your dehumidification equipment (VIDEO)

Getting at how much humidity control you need isn’t the international man of environmental control mystery, like many of us think. In fact, how to properly size your dehumidifiers is relatively straightforward IF you have the necessary data.

quest perfect your set up Grow room dehumidifiers: Perfect your setup

Grow room dehumidifiers: Perfect your setup

When the team at East Coast Cultivation set out to build its new indoor grow operation in Rhode Island, it knew it had to nail one thing: environmental controls.

plants Vapor Pressure Deficit and Why it Matters

Vapor Pressure Deficit and Why it Matters

The gardening world is filled with trends and phrases that come and go as quickly as they’re created. Sometimes these concepts are thrown around without full understanding, especially with the more scientific processes. One of the most misunderstood concepts is vapor pressure deficit, or VPD, as it’s commonly called.

Need Help Sizing?

Our humidity experts are standing by to assist.

Installation Options

Freestanding unit

Hanging Kit Available

P-Trap Requirements

Quest 105: Discover your potential savings.

1

How much does your energy cost?

2

How much water do you need to remove?

3

How much does the competing dehumidifier cost?

Quest Dual 105

Machines/Room

4

Equipment Cost @ MSRP 4 × $2499.95

$ 4800

Vegetation Period (4 Weeks) 80F/60%, Filter 100%

$ 2400

Flower Period (7 Weeks) 75F/55%, Filter 50%

$ 1600

Flower Period (2 Weeks) 70F/50%, Filter 25%

$ 114

Operating Costs Per 3mo Grow Cycle

$ 4114

Yearly Costs

$ 16,457

× 5

Year 1 4 Grow Cycles

$ 16,457

Year 2 4 Grow Cycles

$ 16,457

Year 3 4 Grow Cycles

$ 16,457

Year 4 4 Grow Cycles

$ 16,457

Year 5 4 Grow Cycles

$ 16,457

Total Cost (5 Years) Equipment + Operating Cost

$ 123631

Competitor 95

Machines/Room

Additional competitor units may be needed to address total water removal at rated conditions due to ppd de-rated capacity.

Quest 105: 66 gal/day de-rated capacity
Competitor 95: 55 gal/day de-rated capacity

4

Equipment Cost @ MSRP 5 × $1551.99

$ 4800

Vegetation Period (4 Weeks)
80F/60%, Filter 100%

$ 3304

Flower Period (7 Weeks)
75F/55%, Filter 50%

$ 3177

Flower Period (2 Weeks)
70F/50%, Filter 25%

$ 240

Operating Costs Per 3mo Grow Cycle

$ 4114

Yearly Costs

$ 16,457

× 5

Year 1 4 Grow Cycles

$ 16,457

Year 2 4 Grow Cycles

$ 16,457

Year 3 4 Grow Cycles

$ 16,457

Year 4 4 Grow Cycles

$ 16,457

Year 5 4 Grow Cycles

$ 16,457

Total Cost (5 Years) Equipment + Operating Cost

$ 180012

Total Savings Over 5 Years

$ 56,381
