F10 Air Mover
Fan Series
Highest efficiency air mover
Say goodbye to stagnant, damp air that invites molds, fungus, and unwanted pests. Ensure optimal airflow and elevate your dehumidifier’s performance with the help of the NEW Quest F10 Dual-Axial Air Mover. Engineered as two fans in one, with less power draw than its predecessor.
COMING SOON!
features
Intended for use in every unique space, the F10 Air Mover features a highly customizable design with designated mounting corners for multiple setup configurations.
You can ditch the bulky, awkward fan that crowds your valuable space. The Quest F10 boasts a sleek, compact, low-profile design that effortlessly fits into tight spaces, under a plant canopy, or between tiered shelves. Don’t be fooled by its discreet appearance – this energy-efficient air mover packs a powerful punch, circulating an impressive 1,015 cubic feet of air per minute on only 1.1 amps.
Key Features
HIGH VELOCITY AIR FLOW
1,015 CFM high velocity air flow thanks to our dual axial design
DAISY-CHAINABLE
Daisy-chain and synchronize up to 10 Quest F10 fans on the same 15-amp circuit
COMPACT UNIT
For mobility and a small footprint that won’t interfere with operations
Features

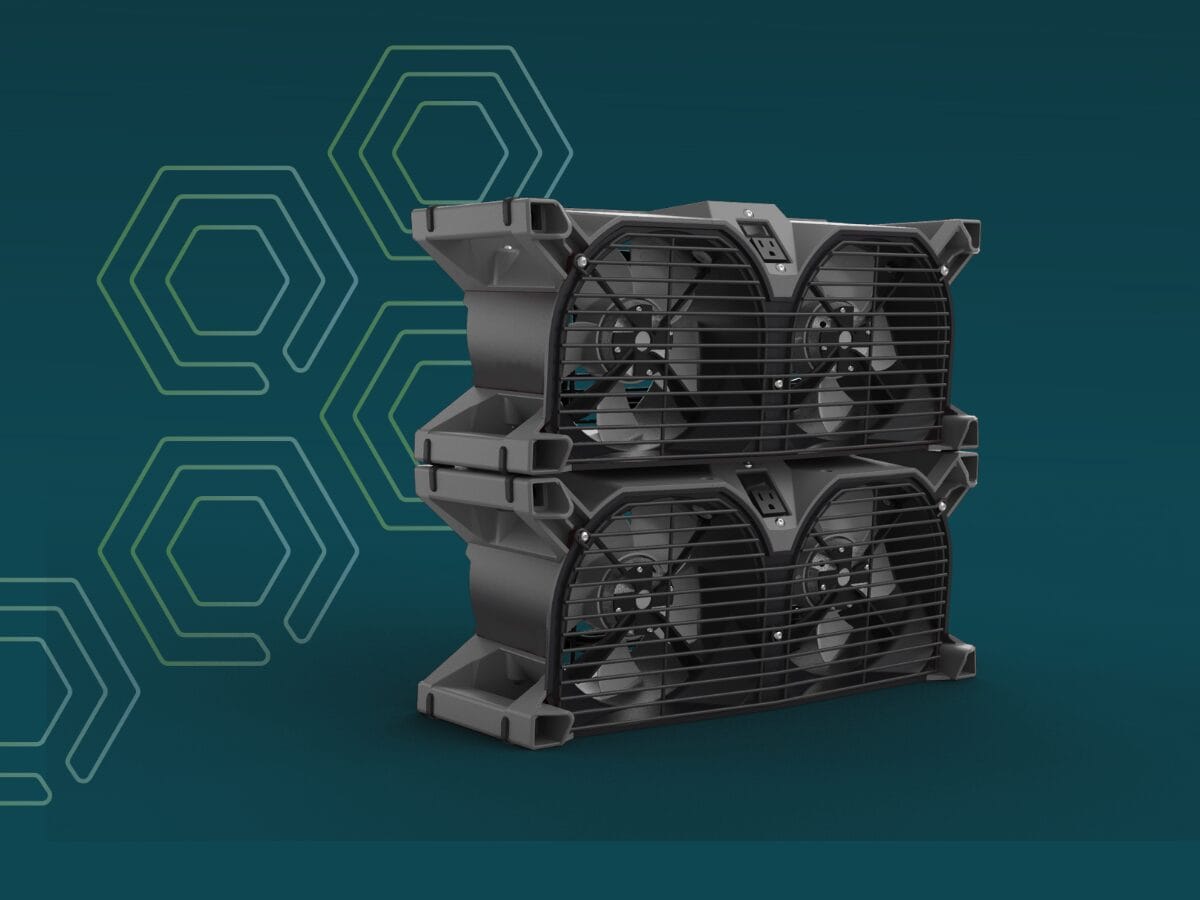

HORIZONTAL & VERTICAL STACKING
This fan easy to stack for space-saving storage
LOW POWER USAGE
Uses only 1.1 amps of power, leaving room for more equipment on your circuit.
CORD WRAP
Features a convenient cord wrap
MULTIPLE CONFIGURATIONS
Customizable for airflow in any direction you need it – horizontal, vertical, or angled
DAISY-CHAINABLE
Daisy-chain and synchronize up to 10 Quest F10 fans on the same 15-amp circuit
specifications
Specifications
Part Number
4042250-06
Unit Weight
16 lbs
CFM
1,015
Recommended Breaker Size
10 per 15-Amp breaker
Supply Voltage
110-120V, 60 Hz
Power Cord
17.5 ft, NEMA 5-15P
Unit Dimensions
21″L x 8.3″W x 9.4″H
Fans
Dual Axial
Warranty
1 Year
installation
Installation options

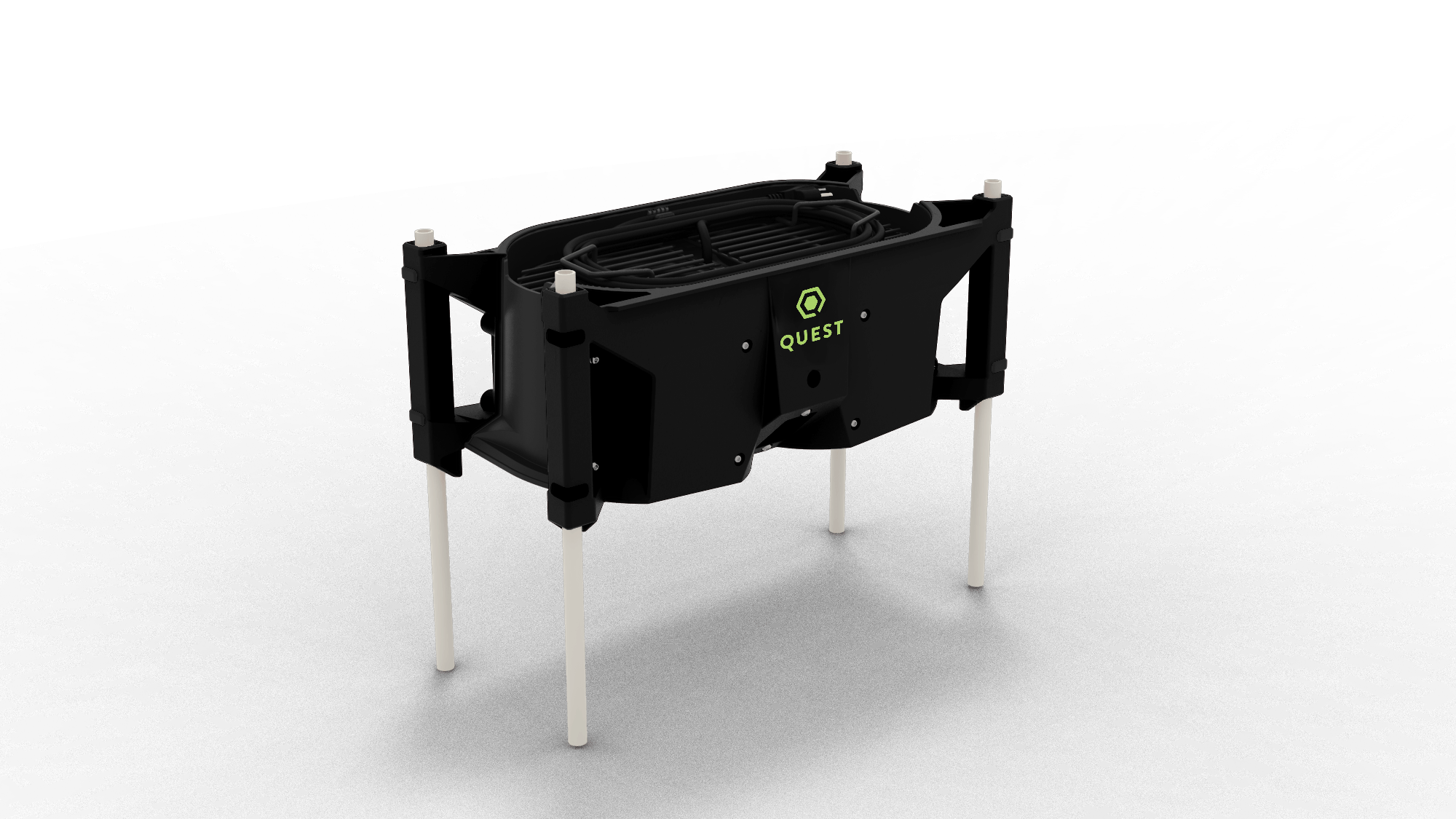

Designed with flexibility in mind, the Quest F10 air mover can be placed on either end for vertical or horizontal airflow. Place the F10 on PVC to direct your airflow at specific angles, or use other fasteners to mount it wherever you need it. Engineered for sturdy stacking, mounting, and easy installation in your environment, the F10 air mover provides the ultimate flexibility in airflow design.

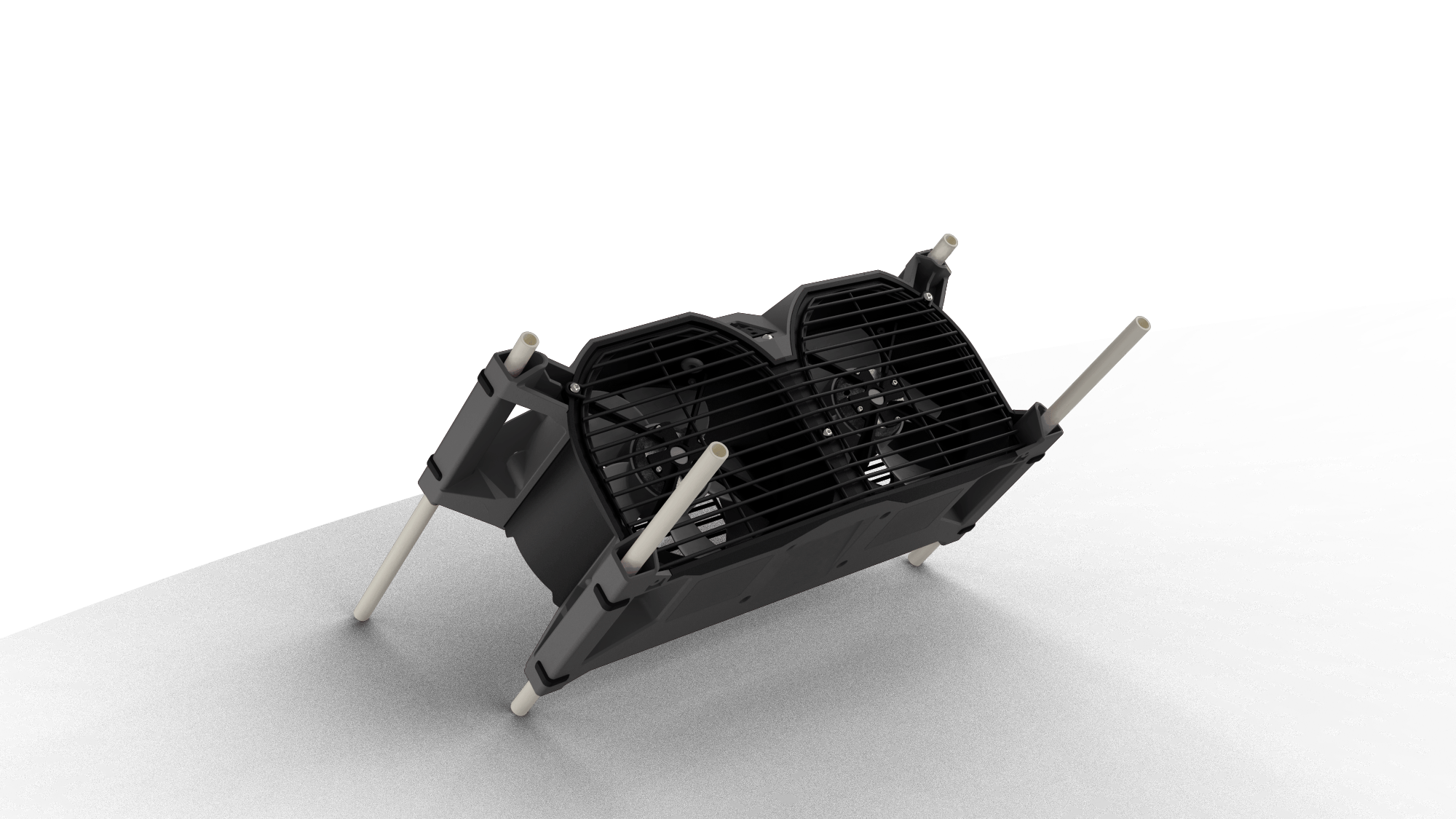

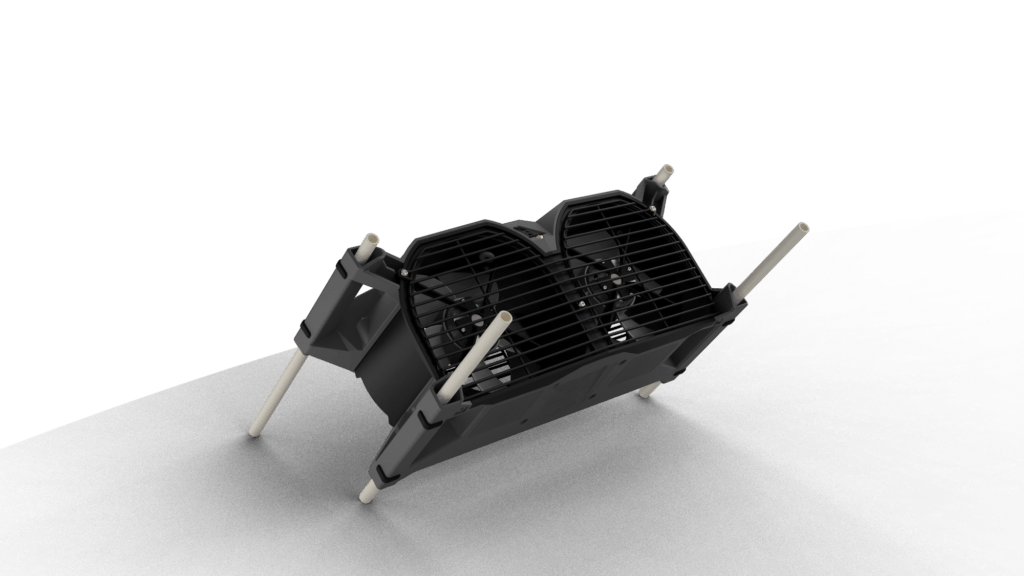

ANGLED AIRLFOW

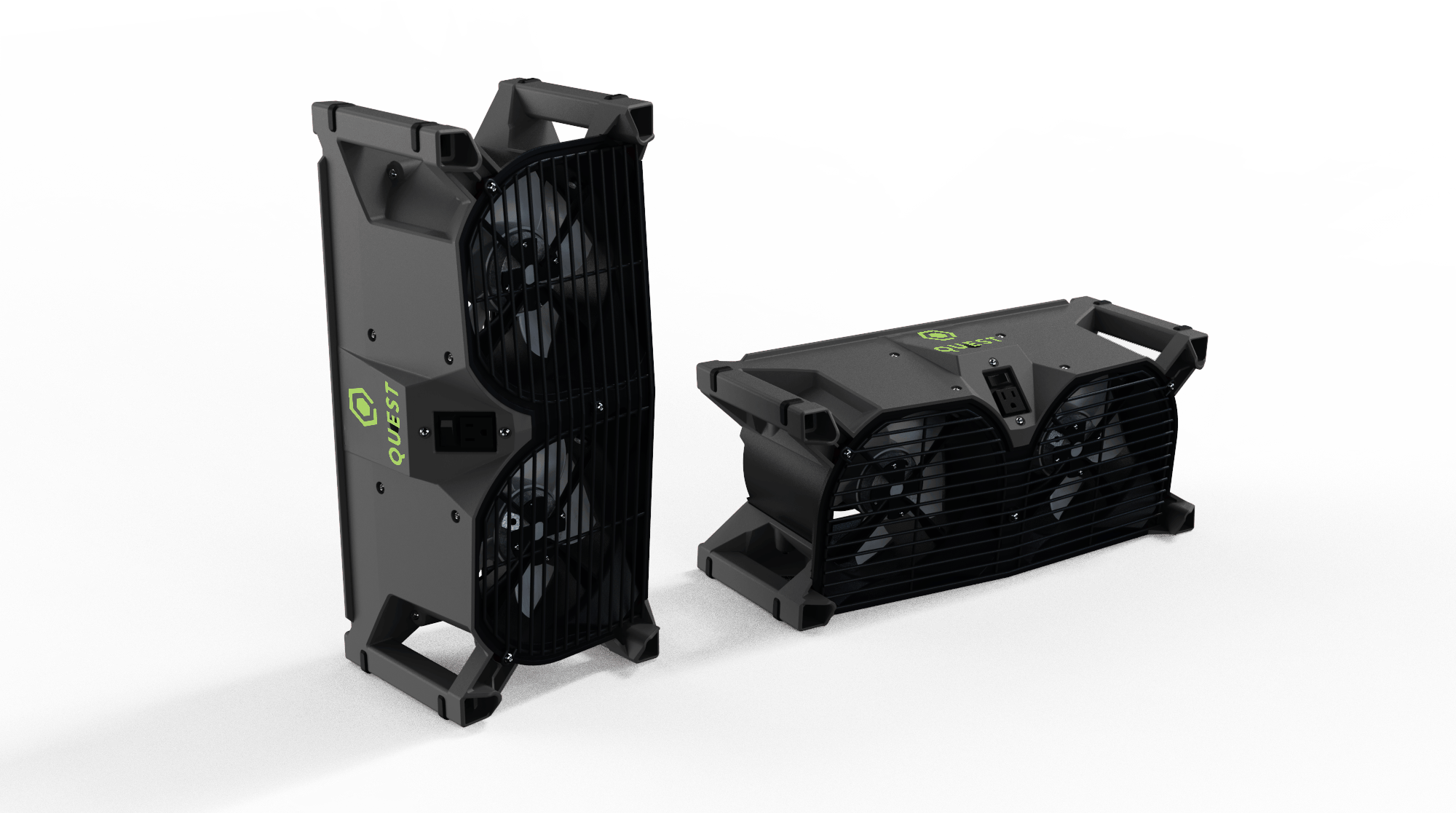

VERTICAL OR HORIZONTAL AIRFLOW
UPWARD OR DOWNWARD AIRFLOW
