Consistent Control. Cost effective.

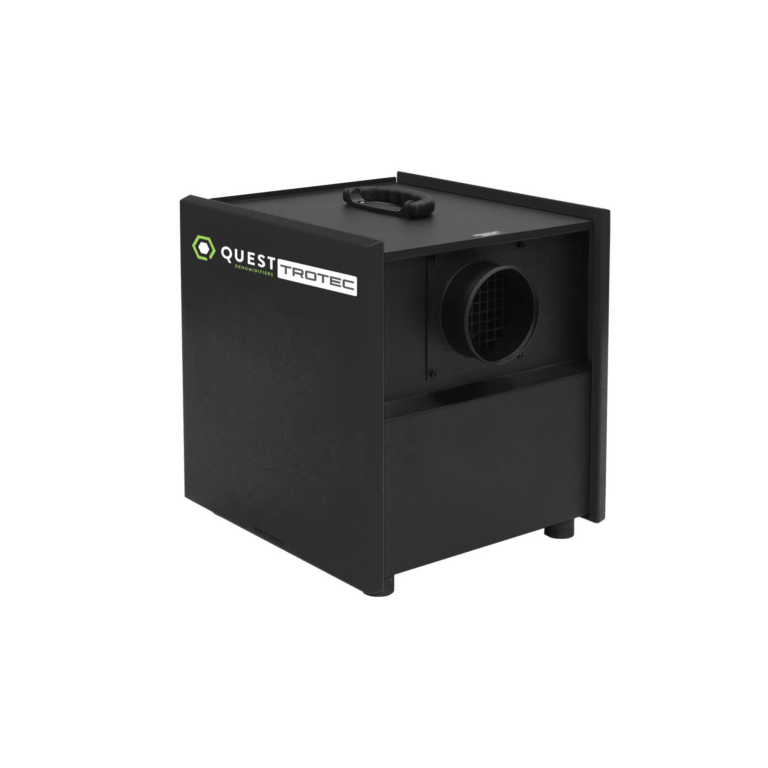

Quest Trotec TR 80 / 110

From clean-room applications to drying/curing, the TR 80 and TR 110 are packed with the power needed to provide consistent humidity control at an array of dew points. Simple to adjust, each model can deliver variable grain depression depending on the job.



More Information

  • Process Airflow: 264-323 CFM
  • Regeneration Airflow: 38-47 CFM
  • Water Removal: 84-116 PINTS/DAY AT 80°F, 60% RH (14.5 GALLONS)
  • Power: 230V 50/60HZ
  • Amps: 7.2 – 9.2
  • Heater: 1.95 – 2.7 KW
  • DIMENSIONS (L X W X H): 15.8” X 13.8” X 16” (TR 80); 17.8” X 15.8” X 18” (TR 110)
  • Optional Accessory: Weather protection (TTR800) kit available
  • MSRP: $2,849.95 – $3,199.95

Product Specs

weight

44 – 55 LBS

Product Documents

Desiccant Product Comparison

Desiccant Product Comparison












TR 80
TR 110

TR 190
TR 390

TR 570
TR 830
TR 1100

TR 1500
TR 1900
TR 2400

TR 2900
TR 3500
TR 3900
Airflow
Airflow 264 – 323
CFM
560 – 1030
CFM
1380 – 2530
CFM
3410 – 5295
CFM
6180 – 8650
CFM
  Water Removal
Water Removal 84 – 116
lbs/day
190 – 390
lbs/day
570 – 1085
lbs/day
1540 – 2445
lbs/day
2915 – 3950
lbs/day
  Regen Airflow
Regen Airflow 38 – 47
CFM
76 – 158
CFM
220 – 435
CFM
615 – 975
CFM
1160 – 1570
CFM
  Heater
Heater 1.95 – 2.7
kW
4.1 – 9.0
kW
12.5 – 24.5
kW
36 – 57
kW
66 – 90
kW
  Power
Power 230V 50/60hz 480V 50/60hz 480V 50/60hz 480V 50/60hz 480V 50/60hz
  Amp Draw
Amp Draw 7.2A – 9.2A 7.5A – 15.0A 23A – 42.8A 60A – 93.5A 108A – 150A
  Dimensions
L x W x H
Dimensions
L x W x H
15.8″x13.8″x16″
17.8″x15.8″x18
25″x26″x37″ 53″x30″x52″ 75″x43″x66″ 83″x60″x83″
  Weight
Weight 44 – 55
lbs
188 – 220
lbs
510 – 595
lbs
1500 – 1655
lbs
1985 – 2425
lbs
  Outdoor
Operation
Outdoor
Operation
Optional Optional Optional Optional Optional
