High capacity. High performance.

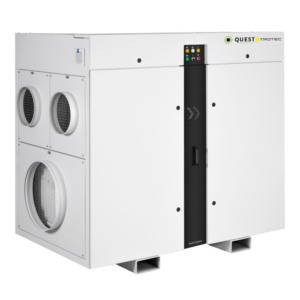

Quest Trotec TR 1500 / 1900 / 2400
As your facility production or size increases, so do your dehumidification needs. The TR 1500, 1900 and 2400 are popular choices for warehouses, distribution centers and food processors who need to control humidity in large spaces at low dew points and temperatures down to -40°F.
More Information
- PROCESS AIRFLOW: 3,410 – 5,295 CFM
- REGENERATION AIRFLOW: 615 – 975 CFM
- WATER REMOVAL: 1,540 – 2,445 PINTS/DAY AT 80°F, 60% RH (192/305 GALLONS)
- POWER: 480V 50/60HZ
- AMPS: 60 – 93.5
- HEATER: 36 – 57 KW
- DIMENSIONS (L X W X H): 75” X 43” X 66”
- Optional Accessory: Weather protection (TTR800) kit available
- MSRP: $41,999.95 – $50,999.95
Product Specs
| weight | 1,500 – 1,655 LBS |
|---|
Product Documents
Desiccant Product Comparison
Desiccant Product Comparison
 |
 |
 |
 |
 |
|
|---|---|---|---|---|---|
TR 80 TR 110 |
TR 190 TR 390 |
TR 570 TR 830 TR 1100 |
TR 1500 TR 1900 TR 2400 |
TR 2900 TR 3500 TR 3900 |
|
| Airflow | |||||
| Airflow | 264 – 323 CFM |
560 – 1030 CFM |
1380 – 2530 CFM |
3410 – 5295 CFM |
6180 – 8650 CFM |
| Water Removal | |||||
| Water Removal | 84 – 116 lbs/day |
190 – 390 lbs/day |
570 – 1085 lbs/day |
1540 – 2445 lbs/day |
2915 – 3950 lbs/day |
| Regen Airflow | |||||
| Regen Airflow | 38 – 47 CFM |
76 – 158 CFM |
220 – 435 CFM |
615 – 975 CFM |
1160 – 1570 CFM |
| Heater | |||||
| Heater | 1.95 – 2.7 kW |
4.1 – 9.0 kW |
12.5 – 24.5 kW |
36 – 57 kW |
66 – 90 kW |
| Power | |||||
| Power | 230V 50/60hz | 480V 50/60hz | 480V 50/60hz | 480V 50/60hz | 480V 50/60hz |
| Amp Draw | |||||
| Amp Draw | 7.2A – 9.2A | 7.5A – 15.0A | 23A – 42.8A | 60A – 93.5A | 108A – 150A |
| Dimensions L x W x H |
|||||
| Dimensions L x W x H |
15.8″x13.8″x16″ 17.8″x15.8″x18 |
25″x26″x37″ | 53″x30″x52″ | 75″x43″x66″ | 83″x60″x83″ |
| Weight | |||||
| Weight | 44 – 55 lbs |
188 – 220 lbs |
510 – 595 lbs |
1500 – 1655 lbs |
1985 – 2425 lbs |
| Outdoor Operation |
|||||
| Outdoor Operation |
Optional | Optional | Optional | Optional | Optional |
